Production lines slow down and products get rejected when parts aren't properly dried or when dust remains on critical surfaces. In most cases, the real problem is using blow off system components that aren’t the best match for the job.
With so many options — from air knives and air cannons to compressed air and direct drive blowers — choosing the right solution can be challenging. Many operations stick with familiar systems without realizing that newer alternatives could lower energy costs and boost performance.
In this guide, we’ll break down key blow off system components and focus on real-world applications. You'll learn what each part does best, when to use it, and how to select the right setup for your production needs.
Air Cannon Nozzle
An air cannon nozzle delivers a focused, high-speed blast of air through a specially designed outlet. Typical sizes range from 2 inches to 8 inches, with custom designs available for specific challenges. Some nozzles include accelerator inserts to increase both range and speed without using extra energy.
Common uses include removing shot after peening, drying water in tight spaces, and cleaning hard-to-reach areas like inside bottles or complex automotive parts.
You might notice that some air cannons perform better than others. It’s not just about pushing more air through a tube. A well-designed cannon controls air velocity, airflow pattern, and impact force to clean more effectively while using less air. It directs the airflow exactly where it’s needed, rather than wasting energy.
What is an Air Knife System?
An air knife system creates a continuous, laminar sheet of high-speed air. You can think of it like an "air curtain" that sweeps across a surface. This even flow treats the entire target area and helps prevent streaks or uneven drying, which can cause problems for many production lines.
Common applications include:

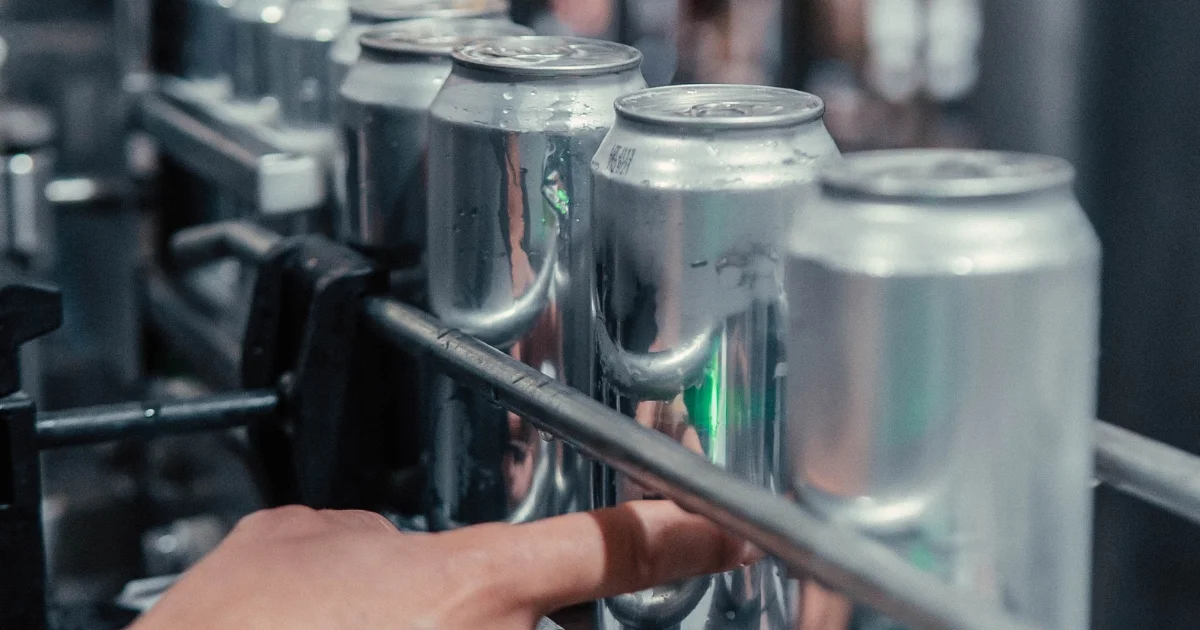

Drying bottles, cans, or packaging before labeling
Cooling hot parts after molding to avoid warping
Removing dust or static from sensitive materials
Stripping liquid films from flat surfaces
Air knife performance depends on a few important factors: the precision of the air gap (which can be adjusted to fine-tune airflow), the distance from the target (usually a few inches away), and the right air volume. Many operators place air knives too far from the surface, which reduces performance and wastes energy.
Air knives are available in many lengths, from 6 inches to over 240 inches, and feature adjustable orifice sizes. Air Force 1's air knife systems also offer static control bars to eliminate dust buildup — especially useful in electronics and packaging lines. This flexibility makes air knives valuable across industries like food, beverage, automotive, and electronics.
Direct Drive vs Belt Drive Blower
Direct Drive Blower
A direct drive blower connects the motor shaft directly to the impeller without using belts or pulleys. This simple design improves energy efficiency by reducing energy loss between the motor and the air delivery.
Advantages: Higher energy efficiency (typically 15–30% better), lower maintenance needs, and stronger reliability in demanding environments.
Best for: Applications that need consistent airflow, minimal downtime, and reliable performance over long periods.
Maintenance needs: Fewer moving parts mean longer service intervals and lower overall maintenance costs.
Belt Drive Blower
A belt drive blower uses a belt and pulley system to spin the impeller, adding extra mechanical parts between the motor and the air stream.
Advantages: Easier to adjust speeds by changing pulleys and usually comes with a lower upfront cost.
Best for: Systems that need flexible speed control but can handle more frequent maintenance.
Maintenance needs: Regular belt checks, tension adjustments, and occasional belt replacements.
In simple terms, direct drive systems deliver better energy savings and long-term reliability, while belt drive systems offer more speed flexibility but need more regular upkeep. As energy costs rise and the demand for higher reliability grows, more companies are moving toward direct drive technology.
Compressed Air Blow Off System
A compressed air blow off system uses air from a compressor, not a blower, to create high-speed air streams. These systems usually run at much higher pressures (80–120 PSI compared to 1–3 PSI for blower systems), but they deliver less total air volume.
Pros:
Easy to install where compressed air is already available
Good for small, targeted jobs that need precision
Works well in very tight spaces
Cons:
High energy costs compared to blower systems (often 6–8 times more expensive, according to the U.S. Department of Energy)
Not ideal for large operations
Pressure drops across the system can reduce performance
Many people assume that higher pressure automatically means better cleaning, but that's not true. In reality, effective cleaning and drying often depends more on the amount of air volume than pressure alone.
Laminar and Turbulent Air Flow
Laminar Flow
In laminar flow, air moves in smooth, parallel layers without mixing.
Ideal for: Precise drying, static control, and applications that need even, consistent treatment.
Example: Air knives blowing evenly across beverage cans or circuit boards.
Characteristics: Predictable, controllable, and uniform across the surface.
Turbulent Flow
In turbulent flow, air moves chaotically, with swirls, eddies, and random patterns.
Ideal for: Knocking loose stubborn debris and reaching into hard-to-reach spaces.
Example: Air cannons blasting dust out of pipes or complicated components.
Characteristics: More aggressive, reaches into tight spots, but the coverage is less even.
Laminar flow moves like water through a clean pipe — steady and predictable. Turbulent flow acts like rapids, powerful but chaotic, reaching into every corner. Many installations fail because the airflow type doesn’t match the application.
Cool Down Systems
Cool down systems use controlled air flow to lower the temperature of parts or machines after intense processes like welding, forming, or quenching. These systems help prevent heat damage and keep production moving by cooling parts at the right speed.
Key features:
Use of ambient or cooled air at the right speeds
Optional cooling coils when regular air isn't enough
Gradual temperature reduction to protect against thermal shock
Variable speed controls to match cooling needs with production demands
Effective cool down systems can speed up production by as much as 30% by cutting down waiting time between steps. They also help machines and tools last longer by preventing heat stress that can cause early failure.
Shot Removal Systems
In industries like aerospace and automotive, shot blasting leaves behind small metal pellets or grit that must be removed before the final finishing steps. Even tiny amounts of leftover shot can cause serious failures in high-performance parts.
Shot removal systems use high-velocity air to clear this debris from surfaces, making sure parts are clean and ready for painting, coating, or assembly. The best systems combine precisely aimed air cannons with the right air velocity to remove stuck debris without damaging the surface underneath.
Benefits include:
Better coating adhesion and surface quality
Fewer defects and less rework during inspections
Safer, cleaner workspaces with fewer airborne particles
Companies like Air Force 1 have developed Custom System Design solutions that make shot removal more efficient while using less energy.
Static Control Systems
Static control systems use ionized air — often delivered through air knives — to neutralize surface charges that attract dust or cause sparks. These systems have become more important as factories work with more plastic parts and sensitive electronics.
Common uses:
Electronics manufacturing, where static discharge can damage components
Plastic molding and processing, where static attracts dirt and debris
Bottling and packaging lines, where static causes handling problems
Integrated static control systems help reduce defects, improve safety, and keep production lines running smoothly. Modern designs combine ionization technology with precise airflow to remove loose particles and neutralize static in a single step.
Air Showers
Air showers use high-velocity air jets to remove dust and contaminants from people and equipment entering cleanrooms.
Key features:
HEPA-filtered air blasting from nozzles placed around the chamber
Adjustable cycle times to handle different contamination risks
Interlocked door systems that prevent anyone from bypassing the cleaning step
A well-designed air shower can cut cleanroom contamination by up to 90%, greatly improving product quality and reducing costly rejects.
Down Draft Tables
A down draft table uses downward airflow to pull particles away from work surfaces, helping to protect both workers and parts during manufacturing processes. These special workstations combine comfort with strong contaminant capture.
Common uses include: Welding, sanding, soldering, chemical processing, and any job that creates airborne particles.
Key features:
HEPA filtration systems that trap particles as small as 0.3 microns
Modular designs that can fit many different industries
Strong airflow capture that meets OSHA safety standards
Modern down draft tables often include smart technologies like variable speed drives. These systems automatically adjust suction power, saving energy during lighter tasks and boosting capture when heavier work is being done.
Blow Off Systems Are Evolving — Are Yours?
Industrial blow off systems are more than just "big fans" — they are precision tools built to solve specific problems. Knowing how each part works can help prevent downtime, improve product quality, and boost overall efficiency. The right system setup can make the difference between smooth production and constant problems.
These systems keep getting better with new materials, smarter control systems, and improved efficiency. Today’s modern blow off solutions often include features like IoT monitoring, built-in diagnostics, and precision airflow controls that didn’t exist a few years ago.
Ready to upgrade your blow off system? A custom design built for your operation’s needs can improve reliability, lower costs, and keep production moving forward.
